Bi-Color Type Liquid Level Gauge

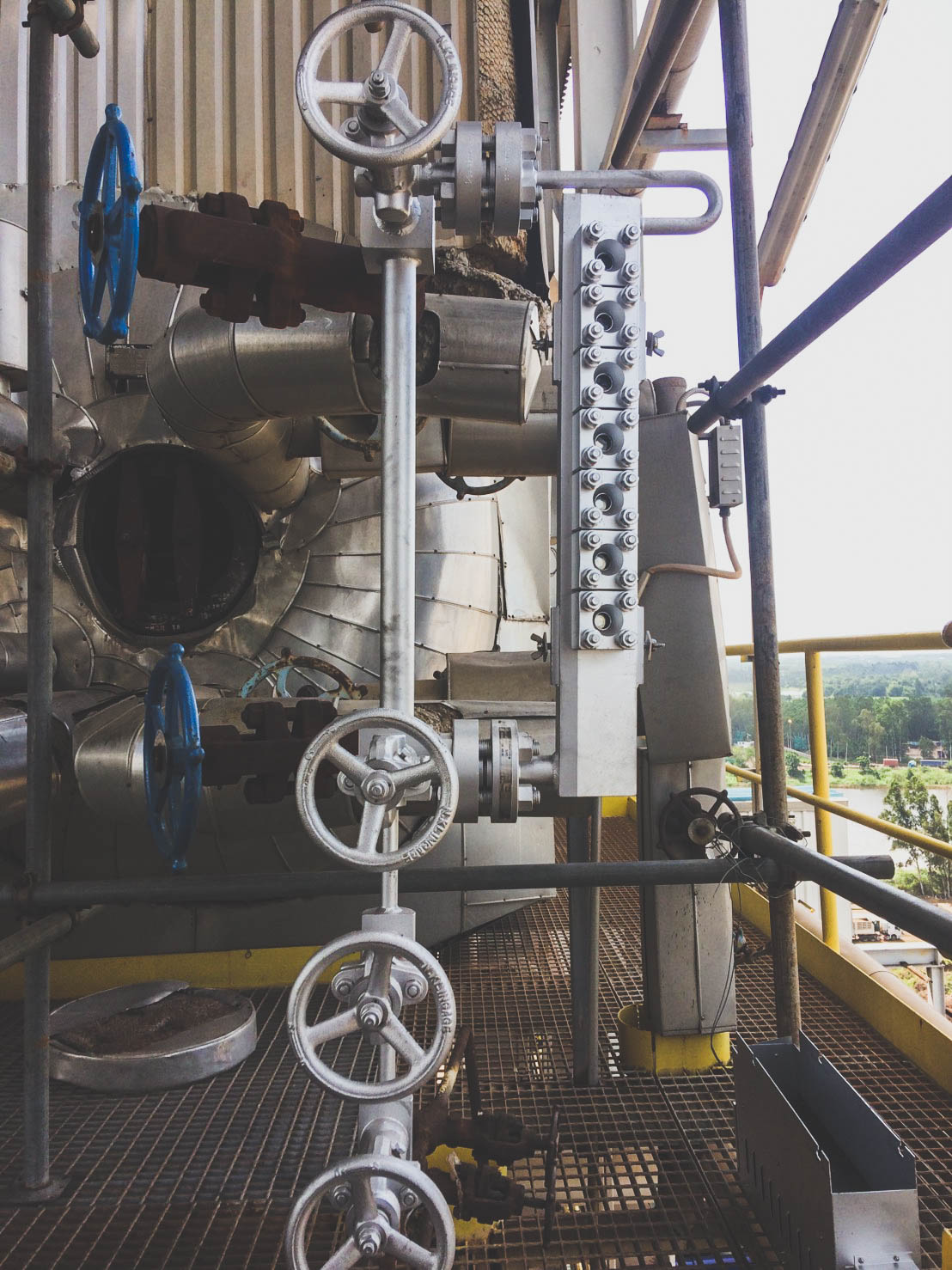

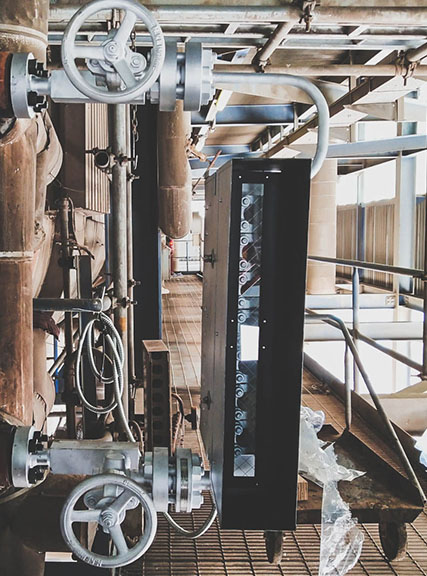

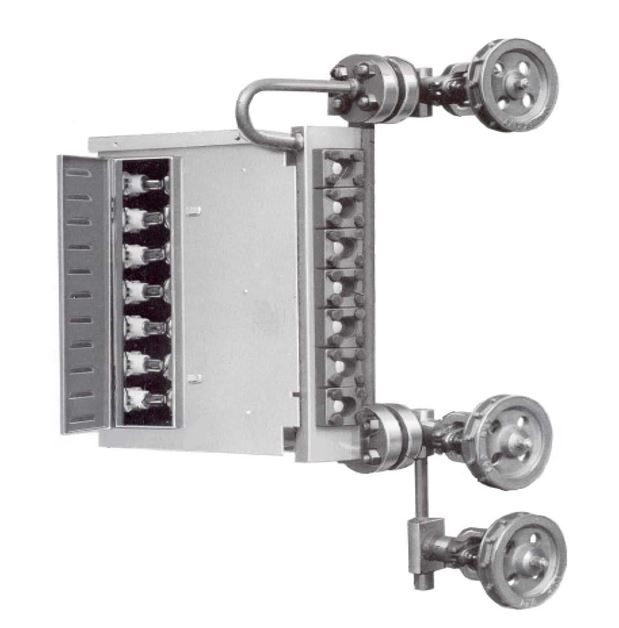

KLINGAGE super-high pressure multiport (multi-window) liquid level gauges mainly used in high pressure boiler equipped with KLINPORT® are highly they offer a high level of safety by preventing the dispersion of broken pieces if glass damaged.

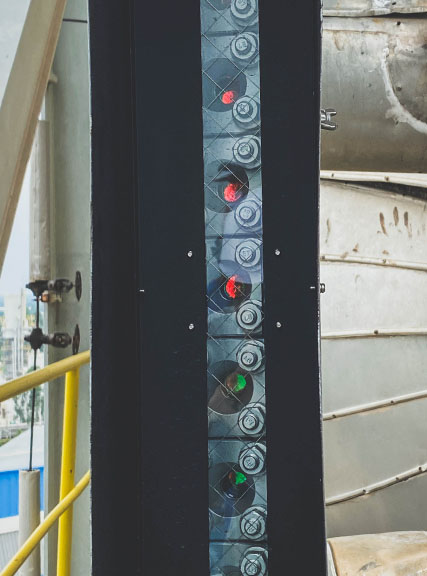

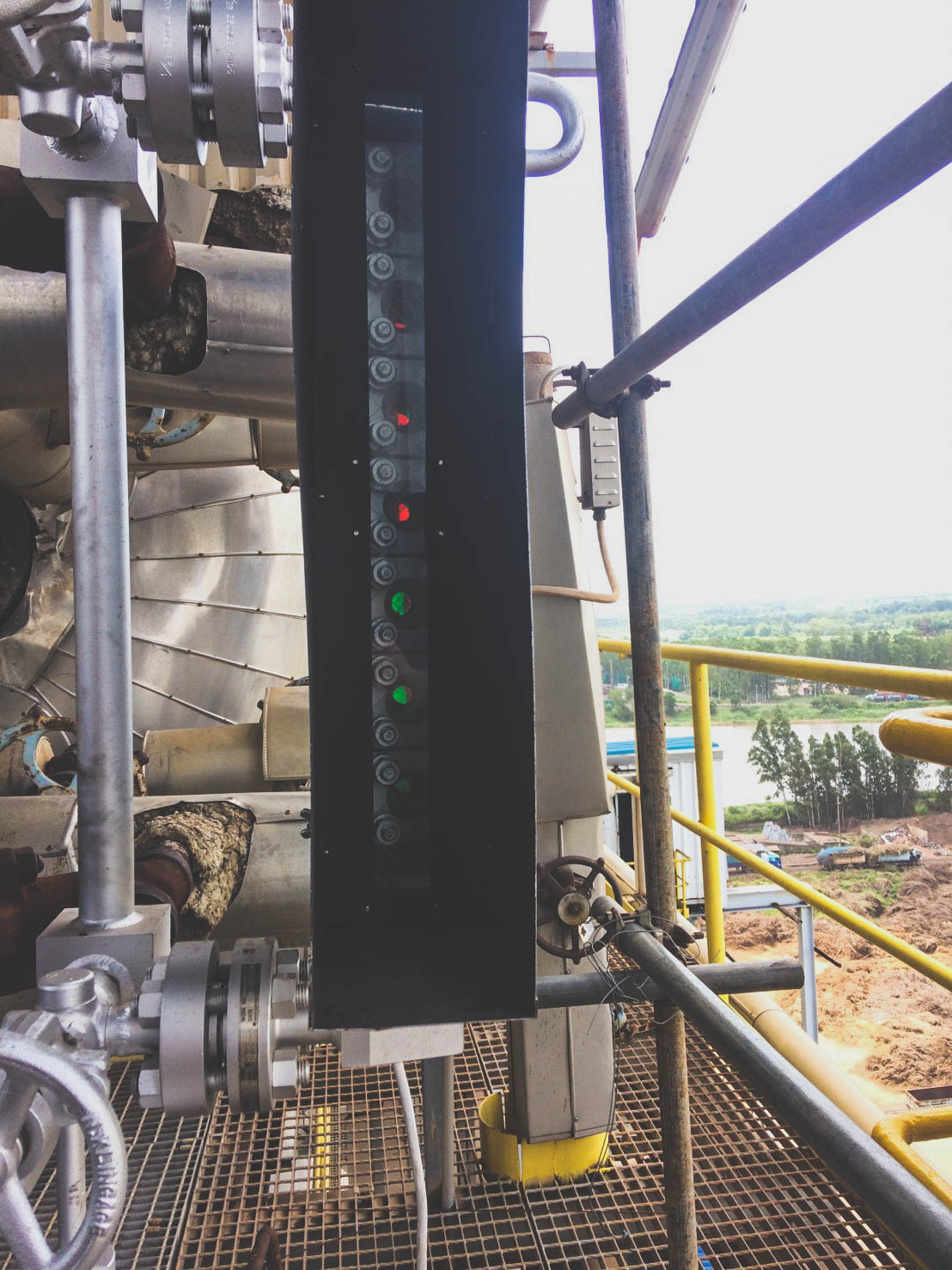

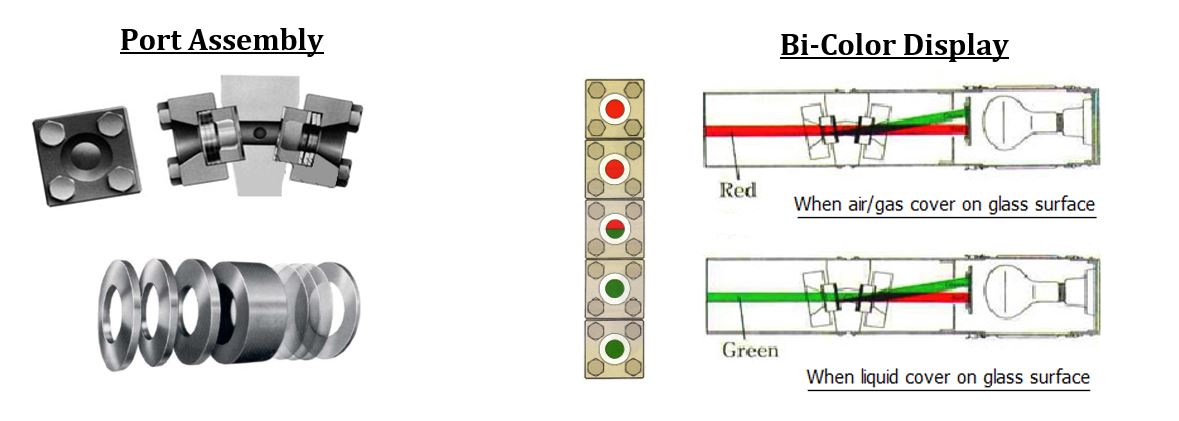

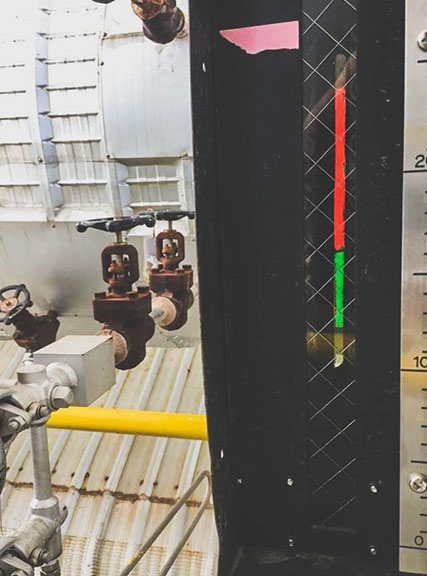

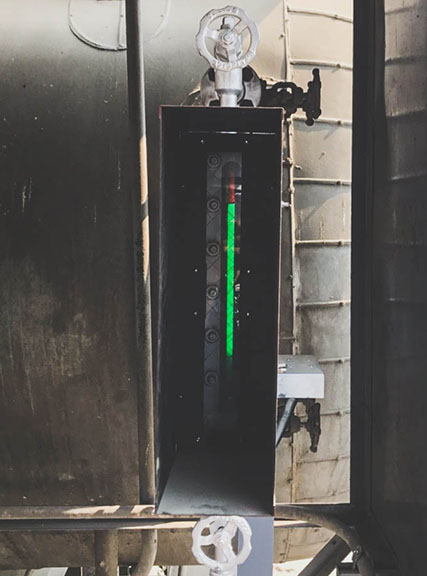

When the color filters (red/green or red/blue) are set in the illuminator, red light is transmitted when air (gas) cover on glass surface while green light is transmitted when transparent liquid cover on glass surface.


Features of KLINPORT

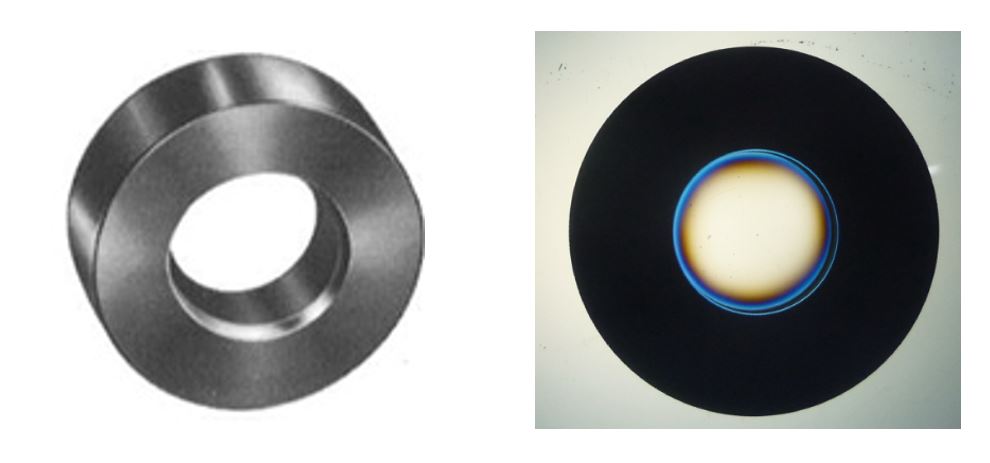

Configuration The glass is fused to a tempered metal ring, and to avoid damage to the mica, the seal faces are polished to a smooth finish

Pressure and heat resistance The glass is fused to the ring in a tempered form which gives especially good pressure resistance. The expansion coefficient of the metal frame and the glass have been made similar, and thanks to the special fusion process, excellent heat resistance is obtained

Shock impact properties The metal frame and glass form a single integral body, and the glass has ample strength. Thus it features outstanding vibration and shock impact-resistant properties.

Safety Even if the glass cracks, as it is firmly pressed in by the metal frame, there would be no drop in strength of the glass and glass splinters would not fly out. Thus KLINPORT ensures a high level of safety
