Level Measurement (Sight Glass)

Level Measurement (Sight Glass)

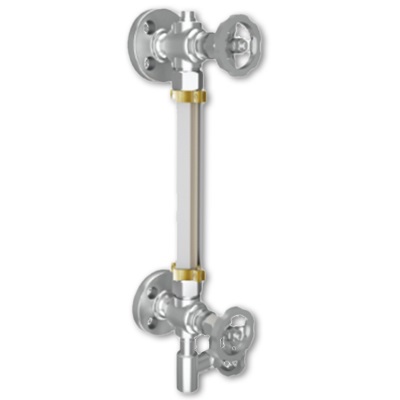

Tubular Type Liquid Level Gauge

Tubular glass or resin forms a liquid chamber between upper and lower gage valves. It is the most simple and inexpensive liquid level gauge which can be used under normal or relatively low pressures. However it is not approved by High Pressure Gas Regulation Law in JAPAN. Various types of tubes are available according to application and type of liquid. For example glass tube marked with a red line for ease of liquid level observation, fluorocarbon tubes for corrosive service acrylic tubes and PVC tubes etc

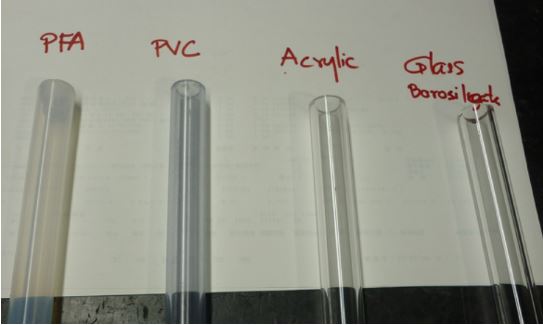

Tube Material

- Glass

- Acrylic
